Spiked Drive Plates and Cones
Spiked drive plates and cones (sold as set)
for Armid yarns. (See Applications)

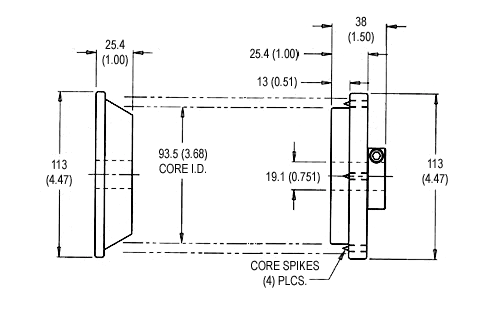

Model: 750-034 Fits 3.68″ Cores3/4″ Bore
Model: 750-072Fits 3.68″ Cores1 ” Bore
Model: 750-070Fits both 3.00″ and3.68″ Cores1 ” Bore
Adaptors
|
Metric
(mm) |
Dimensions
|
English
(in) |
Dimensions
|
|||||||||||
|
|
|
|||||||||||||
|
Model
|
Fits
|
OD
|
A
|
L
|
B
|
F
|
Model
|
Fits
|
OD
|
A
|
L
|
B
|
F
|
|
|
750-075 |
655
|
63.5
|
25.4
|
33.2
|
9.5
|
Flat
|
750-075 |
655
|
2.50 | 1.00 | 1.31 | .375 |
Flat
|
|
|
750-005 |
523
|
82.5
|
25.4
|
33.2
|
9.5
|
Flat
|
750-005 |
523
|
3.25 | 1.00 | 1.31 | .375 |
Flat
|
|
|
750-076 |
610
|
114
|
30.5
|
44.5
|
12.7
|
1/8″ Key
|
750-076 |
610
|
4.50 | 1.20 | 1.75 | .500 |
1/8″ Key
|
|
|
750-077 |
663
|
127
|
34.3
|
47
|
19.0
|
3/16″ Key
|
750-077 |
663
|
5.00 | 1.35 | 1.85 | .750 |
3/16″ Key
|
|
Spool Adaptors
Model: 750-184 To mount 1-1/4″ reels on 1″ shafts.
Other sizes available.
